GfxBench2D Benchmark: SiliconMotion 502

Test uploaded 04/07/2026 6:42am, by client: GfxBench2D_AmigaOS 2.10

Download the benchmark tool and test your own graphics card.

Back to table Next result down Next result up

System Details

Operating System (OS):	AmigaOS Release 4.1 - Final Edition Update 3 Produced by Hyperion Entertainment CVBA
Motherboard/Device:	AmigaOne X5000/20 Manufactured by A-EON Technology Ltd. (Manufacturer above incorrect? Submit a correction)
Processor:	Freescale P5020 (E5500 core), 2.0 @ 2 GHz Unknown Manufacturer (Manufacturer incorrect? Submit a correction)
Processor Cache Size:	L1 (data) L2 L3 32 KiB 512 KiB 0 bytes
RAM Size:	2 GiB
Front Side Bus Frequency:	800 MHz
Graphics card:	SiliconMotion 502 Unknown manufacturer (Details above incorrect? Submit a correction) Product ID: 0x501, Vendor ID: 0x126f Sub-Product ID: 0x1100, Sub-Vendor ID: 0x1af4 VRAM Size: 63.49 MiB
Graphics Card Drivers:	Driver Version PCIGraphics.card 53.18 SiliconMotion502.chip 53.0
Test Screen Mode:	1280×800@75 (16 bit)
Libraries:	Library Version Picasso96API.library 54.18 rtg.library 54.90 exec.library 54.57 graphics.library 54.256 intuition.library 54.33

Test Results

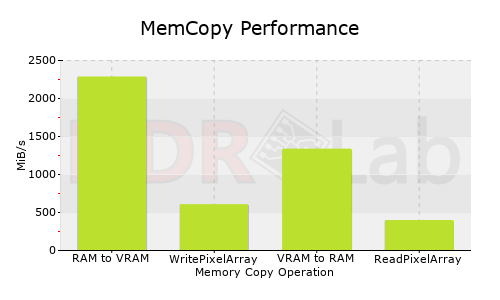

MemCopy Score: 1,652.71

Operation	MiB/s
Copy to VRAM	2,283.21
Write Pixel Array	603.32
Copy from VRAM	1,333.77
Read Pixel Array	394.63

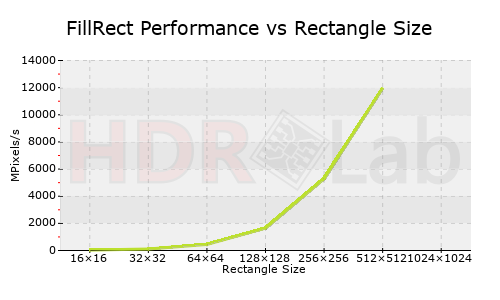

FillRect Score: 1,392.61

Rect Size (w×h)	Operations/s	MPixels/s
16×16	118,230.00	28.86
32×32	112,680.00	110.04
64×64	114,362.00	446.73
128×128	105,743.00	1,652.23
256×256	84,680.50	5,292.53
512×512	47,865.00	11,966.20
1024×1024	N/A	N/A

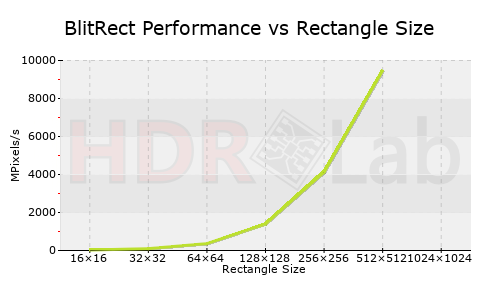

BlitRect Score: 1,105.34

Rect Size (w×h)	Operations/s	MPixels/s
16×16	97,677.20	23.85
32×32	98,800.60	96.48
64×64	92,506.90	361.36
128×128	88,927.60	1,389.49
256×256	65,981.80	4,123.86
512×512	37,918.70	9,479.68
1024×1024	N/A	N/A

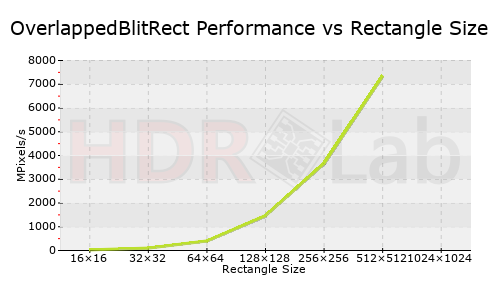

OverlappedBlitRect Score: 929.82

Rect Size (w×h)	Operations/s	MPixels/s
16×16	106,991.00	26.12
32×32	103,839.00	101.41
64×64	103,091.00	402.70
128×128	94,014.60	1,468.98
256×256	58,722.50	3,670.16
512×512	29,392.50	7,348.12
1024×1024	N/A	N/A

Composite Score: N/A

Rect Size (w×h)	Operations/s	MPixels/s
16×16	N/A	N/A
32×32	N/A	N/A
64×64	N/A	N/A
128×128	N/A	N/A
256×256	N/A	N/A
512×512	N/A	N/A
1024×1024	N/A	N/A

CompositeSrcMask Score: N/A

Rect Size (w×h)	Operations/s	MPixels/s
16×16	N/A	N/A
32×32	N/A	N/A
64×64	N/A	N/A
128×128	N/A	N/A
256×256	N/A	N/A
512×512	N/A	N/A
1024×1024	N/A	N/A

Random Score: 1,826.29

Operations/s	MPixels/s
34,694.10	1,826.29

Overall Score: 6,906.77

Back to table Next result down Next result up

Download the benchmark tool and test your own graphics card.
Visit the GfxBench2D forum to discuss benchmarks, make suggestions, etc.

DISCLAIMER: While all effort is being made to make the benchmark pages as accurate as possible, they contain user submitted content. Much of the time you should find accurate and valuable information here. However, HDRLab cannot guarantee the validity of the information. No warranty is made whatsoever as to the accuracy of the content.
