GfxBench2D Benchmark: SiliconMotion 502

Test uploaded 28/04/2026 8:37pm, by client: GfxBench2D_AmigaOS 2.10

Download the benchmark tool and test your own graphics card.

Back to table Next result down Next result up

System Details

Operating System (OS):	AmigaOS Release 4.1 - Final Edition Update 3 Produced by Hyperion Entertainment CVBA
Motherboard/Device:	Sam460ex Manufactured by ACube Systems Srl (Manufacturer above incorrect? Submit a correction)
Processor:	AMCC PPC460EX, 1.2 @ 1.38 GHz Manufactured by AppliedMicro (Manufacturer incorrect? Submit a correction)
Processor Cache Size:	L1 (data) L2 L3 32 KiB 256 KiB 0 bytes
RAM Size:	2 GiB
Front Side Bus Frequency:	276 MHz
Graphics card:	SiliconMotion 502 Unknown manufacturer (Details above incorrect? Submit a correction) Product ID: 0x501, Vendor ID: 0x126f Sub-Product ID: 0x1100, Sub-Vendor ID: 0x1af4 VRAM Size: 63.49 MiB
Graphics Card Drivers:	Driver Version PCIGraphics.card 53.18 SiliconMotion502.chip 53.0
Test Screen Mode:	1920×1080@59 (16 bit)
Libraries:	Library Version Picasso96API.library 54.18 rtg.library 54.90 exec.library 53.89 graphics.library 54.256 intuition.library 54.33

Test Results

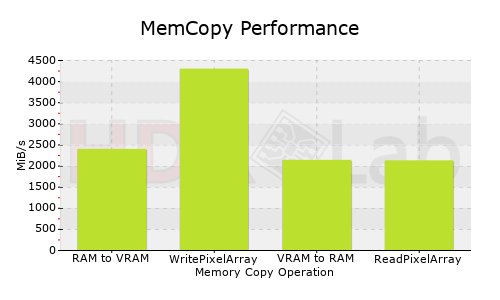

MemCopy Score: 5,946.71

Operation	MiB/s
Copy to VRAM	2,394.76
Write Pixel Array	4,295.74
Copy from VRAM	2,135.18
Read Pixel Array	2,123.22

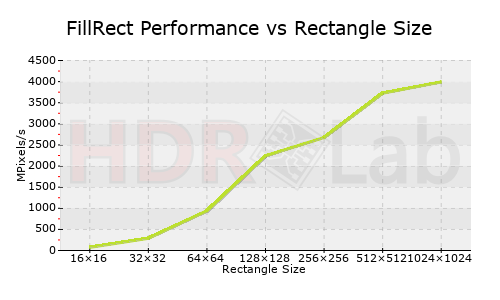

FillRect Score: 995.62

Rect Size (w×h)	Operations/s	MPixels/s
16×16	299,841.00	73.20
32×32	295,342.00	288.42
64×64	240,778.00	940.54
128×128	143,556.00	2,243.07
256×256	42,806.80	2,675.42
512×512	14,900.40	3,725.11
1024×1024	3,992.97	3,992.97

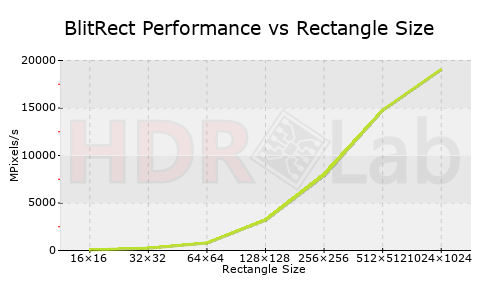

BlitRect Score: 3,290.26

Rect Size (w×h)	Operations/s	MPixels/s
16×16	244,600.00	59.72
32×32	240,431.00	234.80
64×64	203,658.00	795.54
128×128	205,149.00	3,205.46
256×256	127,248.00	7,952.97
512×512	59,002.30	14,750.60
1024×1024	19,064.60	19,064.60

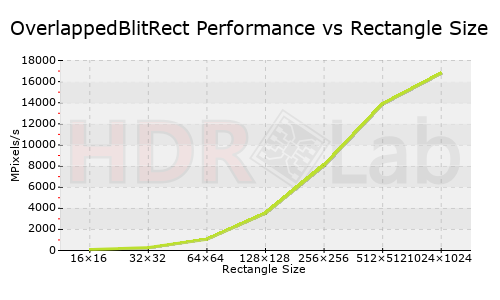

OverlappedBlitRect Score: 3,123.61

Rect Size (w×h)	Operations/s	MPixels/s
16×16	339,489.00	82.88
32×32	280,686.00	274.11
64×64	273,284.00	1,067.51
128×128	225,973.00	3,530.83
256×256	129,287.00	8,080.42
512×512	55,576.20	13,894.10
1024×1024	16,800.70	16,800.70

Composite Score: N/A

Rect Size (w×h)	Operations/s	MPixels/s
16×16	N/A	N/A
32×32	N/A	N/A
64×64	N/A	N/A
128×128	N/A	N/A
256×256	N/A	N/A
512×512	N/A	N/A
1024×1024	N/A	N/A

CompositeSrcMask Score: N/A

Rect Size (w×h)	Operations/s	MPixels/s
16×16	N/A	N/A
32×32	N/A	N/A
64×64	N/A	N/A
128×128	N/A	N/A
256×256	N/A	N/A
512×512	N/A	N/A
1024×1024	N/A	N/A

Random Score: 2,019.93

Operations/s	MPixels/s
9,791.29	2,019.93

Overall Score: 15,376.13

Back to table Next result down Next result up

Download the benchmark tool and test your own graphics card.
Visit the GfxBench2D forum to discuss benchmarks, make suggestions, etc.
